  The shot clock is a special display which be setup on the basketball stand.
Its function include: Display match timer and 24 second timer. Display timeout timer during timeout. Buzzer when match timer or shot clock timeout.

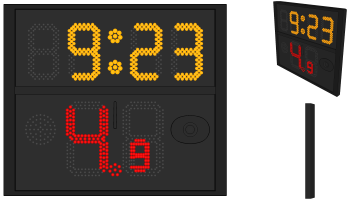

Single Side Shot Clock (FIBA Rule 2017)

Single Side Shot Clock (FIBA 2017 Rule) Specification:
Type: KS-BASH-C/S
Size: 710x610x60 (mm)
Weight: 10KG*2
Power: 60W*2
Material: Aluminum
Communication: Wired + Wireless (433MHz)
Match Timer: Decisecond display in last 1 minute
Shot Clock: Decisecond display in last 5 second
Buzzer: Two different buzzer sound for match timer and shot clock
Mounting Hole: Bottom + Top (For hanging installation)

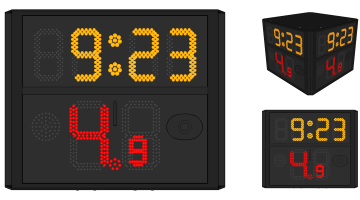

Four Side Shot Clock (FIBA Rule 2017)

Four Side Shot Clock (FIBA 2017 Rule) Specification:
Type: KS-BASH-C/Q
Size: 780x780x610 (mm)
Weight: 45KG*2
Power: 240W*2
Material: Aluminum
Communication: Wired + Wireless (433MHz)
Match Timer: Decisecond display in last 1 minute
Shot Clock: Decisecond display in last 5 second
Buzzer: Two different buzzer sound for match timer and shot clock
Mounting Hole: Bottom

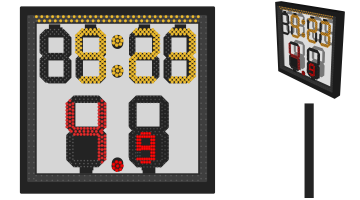

See Through (Double Side) Shot Clock

See Through (Double Side) Shot Clock Specification:
Type: KS-BASH-C/D
Size: 590x580x55 (mm)
Weight: 8KG*2
Power: 60W*2
Material: Aluminum+Plastic
Communication: Wired + Wireless (433MHz)
Match Timer: Decisecond display in last 1 minute
Shot Clock: Second
Buzzer: Two different buzzer sound for match timer and shot clock
Mounting Hole: Bottom

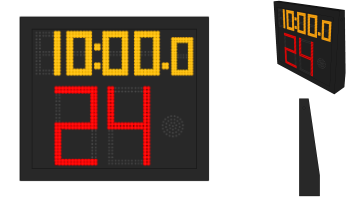

Single Side Shot Clock

Single Side Shot Clock Specification:
Type: KS-BASH-K/S
Size: 600x520x110 (mm)
Weight: 9KG*2
Power: 52W*2
Material: Iron
Communication: Wired
Match Timer: Decisecond
Shot Clock: Second
Buzzer: Single buzzer sound
Mounting Hole: Bottom

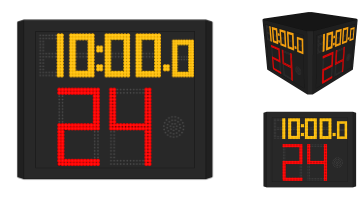

Four Side Shot Clock

Four Side Shot Clock Specification:
Type: KS-BASH-K/Q
Size: 650x650x510 (mm)
Weight: 30KG*2
Power: 110W*2
Material: Iron
Communication: Wired
Match Timer: Decisecond
Shot Clock: Second
Buzzer: Single buzzer sound
Mounting Hole: Bottom
