Bobsleigh Scoring System


Bobsleigh Scoring Software

bobsleigh Scoring Software Features:
  • Arrange the match, generate the order list.
  • Auto timing or manual timing during the match.
  • Display the athlete rank and the team rank.
  • Learn more...

    Bobsleigh Wireless Host

    Bobsleigh Wireless Host Specification:
    Model: KS-PTCL-WH
    Size: 280x200x50 (mm)
    Material: Aluminum Alloy
    Power Input: 100~240V AC
    Power Capacity: 5W
    Communication: 433MHz Wireless
    Wireless Communication Distance: <=150m (unobstructed)
    Features:
  • Must be used together with Ultra Score software.

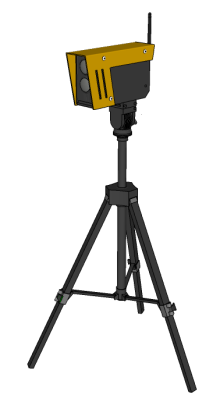

  • Bobsleigh Wireless Photocell

    Bobsleigh Wireless Photocell Specification:
    Model: KS-PTCL-PC
    Size: 184x100x50 (mm)
    Material: Aluminum Alloy
    Weight: 650g
    Battery: AA1.5V * 2
    Power: 150mW
    Communication: 433MHz Wireless
    Maxium Range: 25m
    Installation Screw Hole: 1/4 "
    Features:
  • Detect the cut off of the light, and send the wireless signal.
  • Light detect distance 25m.
  • Can be steup as Start or Finish.

  • Bobsleigh Reflect Panel

    Bobsleigh Reflect Panel Specification:
    Model: KS-PTCL-REFL
    Size: 92.5x132x55 (mm)
    Features:
  • Reflect the light from the photo cell.

  • Bobsleigh LED Display

    Bobsleigh LED Display Specification:
    Model: KS-SCRN-LED960160
    Size: 960x160x100 (mm)
    Material: Aluminum
    Specification:
  • Display athlete's number and name.
  • Display athlete's number, current time and penalties.

  • Bobsleigh LED Display

    Bobsleigh LED Display Specification:
    Model: KS-SCRN-LED960480
    Size: 1080x600x145 (mm)
    Material: Aluminum
    Specification:
  • Display athlete's number and name.
  • Display athlete's number, current time and penalties.

  • Meet Management Server (OVR)

    Meet Management Server Specification:
    Model: KS-MMS-MINI
    Size: 260x135x35 (mm)
    Weight: 1.0 KG
    Features:
  • Easy to create a match, and import the match entry information.
  • Schedule the match with variants of competition systems. Including elimination, round-robin, etc.
  • Provide the match information to the scoring software on each venue/court.
  • Gather the real time score and statistics information from the scoring software. Monitor the progress of the match.
  • Summary and print integrated report.
  • Generate standard reports for the match, including start-list, results, combined results, ranking, etc.
  • Print certifications with adjustable print templates.
  • Print the team score report.
  • Open interface with ODF compatible data feed.
  • Learn more...
