Show Jumping Scoring System

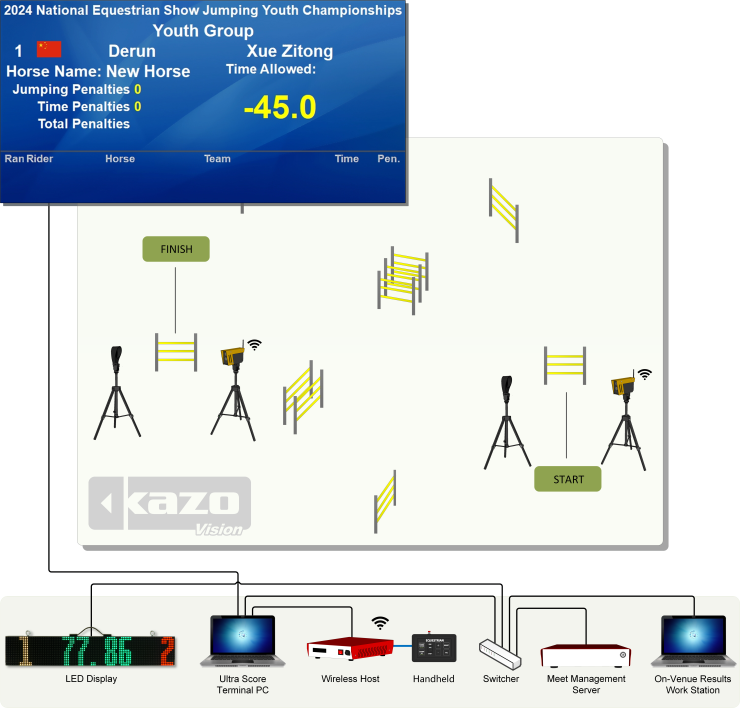

Show Jumping Scoring System Diagram

Dressage Scoring System

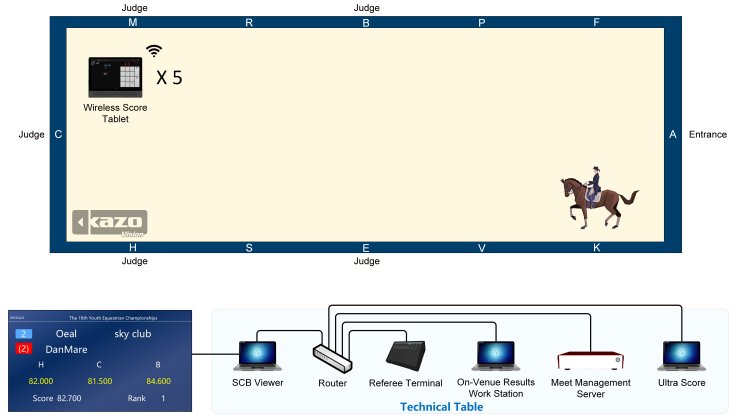

Dressage Scoring System Diagram

Cross Country Scoring System

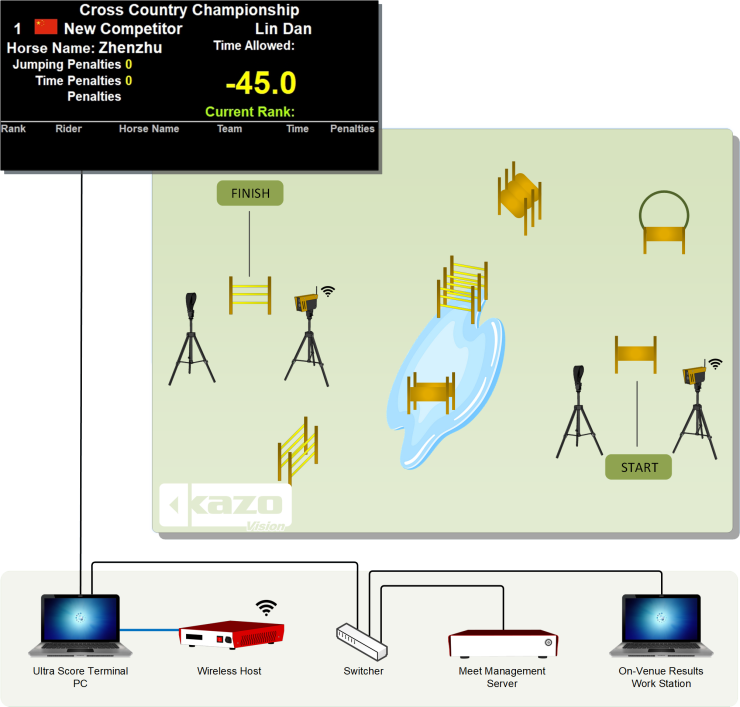

Cross Country Scoring System Diagram


Equestrian Scoring Software

Equestrian Scoring Software Features:
  • Arrange the match, generate the order list.
  • Auto timing or manual timing during the match.
  • Display the athlete rank and the team rank.
  • Learn more...

    Show Jumping Wireless Host

    Show Jumping Wireless Host Specification:
    Model: KS-PTCL-WH
    Size: 280x200x50 (mm)
    Communication: 433MHz Wireless
    Communication distance: 100 m
    Features:
  • Must be used together with Ultra score software.

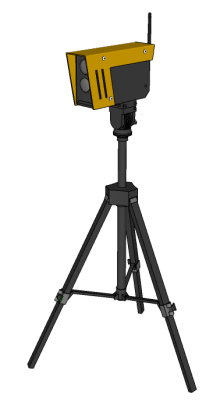

  • Show Jumping Wireless Photocell

    Show Jumping Wireless Photocell Specification:
    Model: KS-PTCL-PC
    Size: 185x100x50 (mm)
    Communication: 433MHz Wireless
    Features:
  • Detect the cut off of the light, and send the wireless signal.
  • Light detect distance 20m.
  • Can be steup as Start, Finish, or the Finish of the 2nd phase easily.

  • Show Jumping Reflect Panel

    Show Jumping Reflect Panel Specification:
    Model: KS-PTCL-REFL
    Size: 92.5x132x55 (mm)
    Features:
  • Reflect the light from the photo cell.

  • Show Jumping LED Display

    Show Jumping LED Display Specification:
    Model: KS-SCRN-LED960160
    Size: 960x160x100 (mm)
    Material: Aluminum
    Specification:
  • Display athlete's number and name.
  • Display athlete's number, current time and penalties.

  • Show Jumping LED Display

    Show Jumping LED Display Specification:
    Model: KS-SCRN-LED960480
    Size: 1080x600x145 (mm)
    Material: Aluminum
    Specification:
  • Display athlete's number and name.
  • Display athlete's number, current time and penalties.

  • Timing & Penalty Display

    Timing & Penalty Display Specification:
    Model: KS-TRISCRN-LED960320
    Shape: Trihedral
    Size: 960x320 (mm)
    Material: Iron
    Color: Black
    LED Module: Outdoor Bright Full-color
    Pitch Pixel: 10MM
    Color Gray Scale: 256
    Waterproof Grade: IP65
    Interface: RS485, wireless 433MHZ
    Input Voltage: AC160V - AC240V 50HZ
    Supporting Power Cable: RVV 3*2.5 15m
    Supporting Data Cable: 10m
    Specification:
  • Display the countdown before the game, game timing and penalty.

  • Referee Tablet

    Referee Tablet Specification:
    Model: KS-GC14-I11
    Screen: 11 Inch
    Pixel: 1920*1200 IPS
    System: Android
    Communication: WIFI
    Features:
  • Be used together with Dressage Scoring Software.
  • Touchable LCD screen.
  • Single Group and Multi Group display mode support.
  • Operate the score and set points.
  • Modify the set.
  • In the multi group display mode, each referee operate on one court.

  • Referee Terminal

    Referee Terminal Specification:
    Model: KS-RETM
    Size: 250x175x70 (mm)
    Weight: 1 KG
    Material: Plastic
    Display: Full color LCD (10 Inch)
    Power: DC 19V
    Communication: LAN, WLAN
    Features:
  • Monitor the scores of judges on the court in real time.
  • Modify or remind the unreasonable grades.
  • Achieve the overall control of the display score.
  • View the current real-time ranking info.

  • Meet Management Server (OVR)

    Meet Management Server Specification:
    Model: KS-MMS-MINI
    Size: 260x135x35 (mm)
    Weight: 1.0 KG
    Features:
  • Easy to create a match, and import the match entry information.
  • Schedule the match with variants of competition systems. Including elimination, round-robin, etc.
  • Provide the match information to the scoring software on each venue/court.
  • Gather the real time score and statistics information from the scoring software. Monitor the progress of the match.
  • Summary and print integrated report.
  • Generate standard reports for the match, including start-list, results, combined results, ranking, etc.
  • Print certifications with adjustable print templates.
  • Print the team score report.
  • Open interface with ODF compatible data feed.
