Parkour Freestyle Scoring System

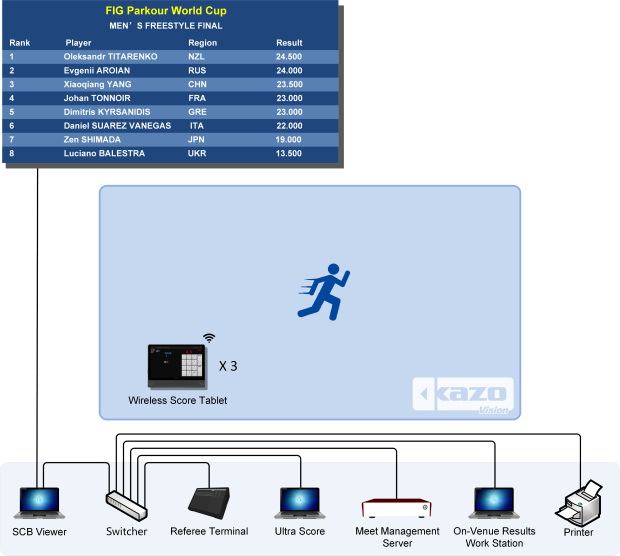

Parkour Freestyle Scoring System Diagram


Parkour Speed-run Scoring System

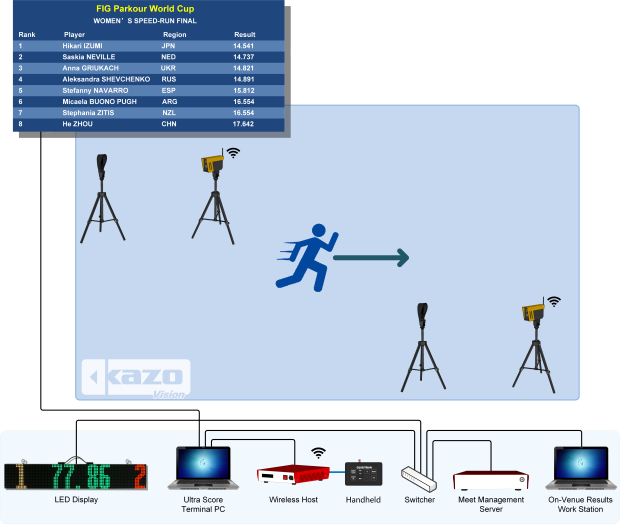

Parkour Speed-run Scoring System Diagram

Parkour Wireless Host

Parkour Wireless Host Specification:
Type: KS-WH-G
Size: 140x120x30 (mm)
Communication: 433MHz Wireless
Features:
  • Must be used together with Parkour Scoring Software.
  • Wireless communication distance up to 20m.
  • Customize the communication band.
  • Support multi-site match simultaneously.
    		•

    Parkour Wireless Handheld

    Parkour Wireless Handheld Specification:
    Type: KS-GC17
    Size: 120x220x70 (mm)
    Display: Full color LCD(4.3 Inch)
    		Features:
  • Must be used together with Parkour Scoring Software.
  • Wireless communication distance up to 20m.
  • Standby time: 8 hours.
    		•

    Parkour Wireless Transmitter

    Parkour Wireless Transmitter Specification：
    Type: KS-LDWT
    Size: 65x23x100 (mm)
    Communication: 433MHz Wireless
    		Features：
  • Wireless transmit the trigger time.
  • Wireless communication distance up to 800m.
    		•

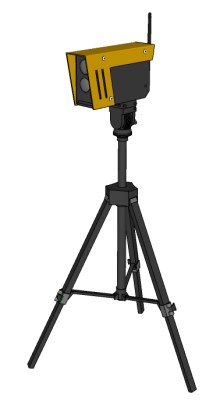

    Parkour Wireless Photocell

    Parkour Wireless Photocell Specification:
    Type: KS-PTCL
    Size: 180x85x50 (mm)
    Communication: 433MHz Wireless
    		Features:
  • Detect the cut off of the light, and send the wireless signal.
  • Light detect distance 20M.
    		•

    Parkour Reflect Panel

    Parkour Reflect Panel Specification:
    Type: KS-PTCL-REFL
    Size: 90x130x55 (mm)
    		Features:
  • Reflect the light from the photo cell.
    		•

    Parkour LED Display

    Parkour LED Display Specification:
    Type: KS-SCRN-LED960160
    Size: 960x160x100 (mm)
    Material: Aluminum
    		Specification:
  • Display the match time.
    		•
