Match Scoring System

The scoring and timing system for LED Screen




Scoring System Solutions for ONE LED SCREEN

Put the LED Control PC on the court. Referee can scoring on this PC directly.

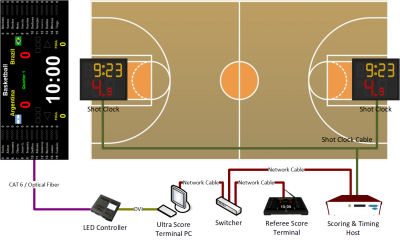

Solution A-1

Put the LED Control PC on the court. Referee can scoring on this PC directly.
Advantage: Simple and affordable.
Disadvantage: It will affect the stability of the system when you put the LED Control PC on the court. It is not suitable for the formal stadium.
Devices: Ultra Score Software - Standalone Edition
Ultra Score Console (Optional)
Recommendation:

Put the LED Control PC in the control room. It can only be used when the scoring console is on the court.

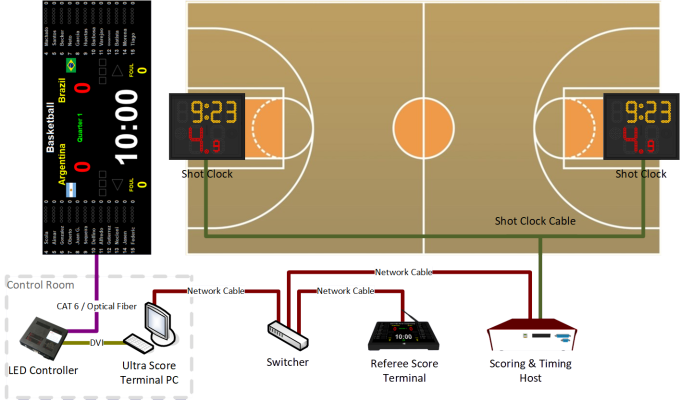

Solution A-2

Put the LED Control PC in the control room. It can only be used when the scoring console is on the court.
Advantage: Simple and affordable.
Disadvantage: Edit the team and player info, or control the advertising through the PC in the control room. The PC on the court can only be used for referee controlling.
Devices: Ultra Score Software - Standalone Edition
Ultra Score Console
Recommendation:

Use the

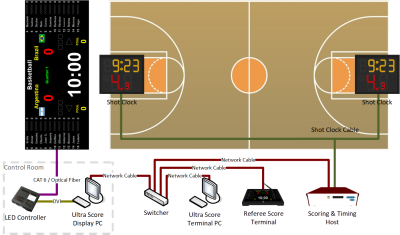

Solution A-3

Use the "Display" program on the PC in control room. There is another PC on the court which can be used for match control as the "Terminal" program, be used for match controlling.
Advantage: The best solution for one screen case. This is what the real professional scoring system should be.
Disadvantage: None.
Devices: Ultra Score Software - Standard Network Edition
Ultra Score Console (Optional)
Recommendation:


Scoring System Solutions for MULTIPLE LED SCREEN

Put just one PC in the control room for controling all LED screens. Only use the scoring console on the court.

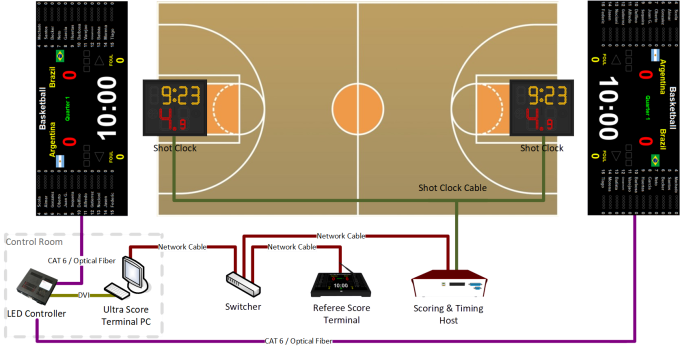

Solution B-1

Put just one PC in the control room for controlling all LED screens. Only use the scoring console on the court.
Advantage: Low cost.
Disadvantage: All screens can only be used to display the same contents. You cannot display the scoreboard on one screen and display player info on another screen. The team and player info should be edit on the PC in the control room.
Devices: Ultra Score Software - Standalone Edition
Ultra Score Console
Recommendation:

Put just one PC in the control room for controlling all LED screens. Put another PC with

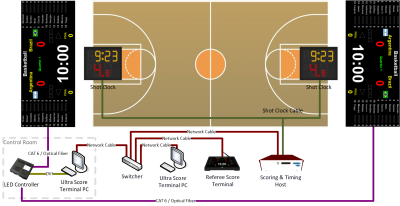

Solution B-2

Put just one PC in the control room for controlling all LED screens. Put another PC with "Terminal" program on the court for referee controlling.
Advantage: Low cost.
Disadvantage: All screens can only be used to display the same contents. You cannot display the scoreboard on one screen and display player info on another screen.
Devices: Ultra Score Software - Standard Network Edition
Ultra Score Console (Optional)
Recommendation:

Put one PC for each LED screen and control all screens separately. Put another PC with

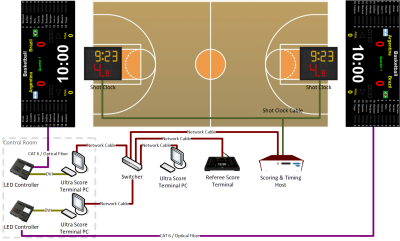

Solution B-3

Put one PC for each LED screen and control all screens separately. Put another PC with "Terminal" program on the court for referee controlling.
Advantage: Control the contents on each LED screen separately. For example, one for scoreboard, another for player info or live video.
Disadvantage: None.
Devices: Ultra Score Software - Professional Network Edition
Ultra Score Console (Optional)
Recommendation:
